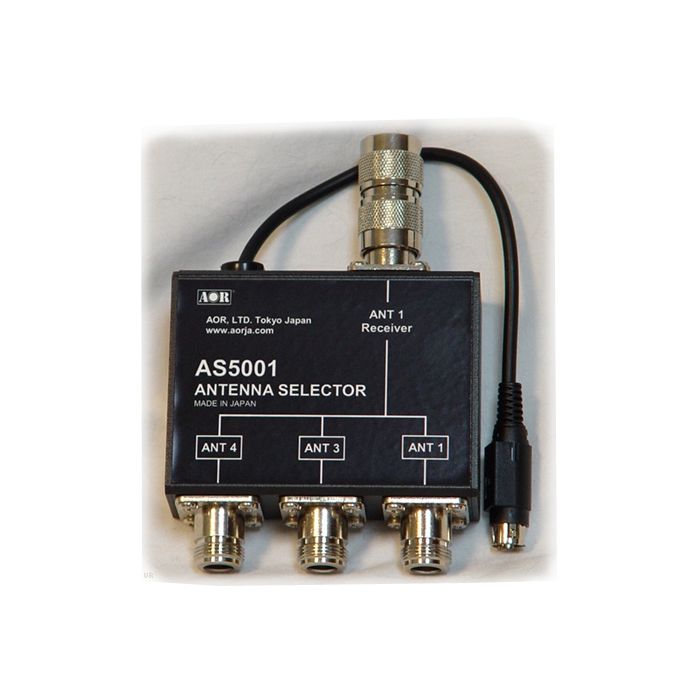

AOR AS-5001 Antenna Switch
Art.nr. 400
Op voorraad
Excl. BTW
€ 199,00
€ 164,46
RX Antenneschakelaar voor AR-5000 & AR-5001 & AR-ALPHA
Description
PECIFICATIONS
Circuit type: RF relays
Frequency Range: 0-3000 MHz
Insertion Loss <100 MHz.: <0.5 dB
Insertion Loss <2000 MHz.: <1.4 dB
Insertion Loss <3000 MHz.: <1.6 dB
Isolation <100 MHz.: >70 dB
Isolation <2000 MHz.: >62 dB
Isolation <3000 MHz.: >30 dB
Impedance: 50 ohm
Connector Type: N female (N male to N male adapter included to connect to receiver)
Power Supply: Supplied by the receiver
Antenna Selector Unit for AR5001D and AR-ALPHA
SPECIFICATIONS
- Circuit type: RF relays
- Frequency Range: 0-3000 MHz
- Insertion Loss <100 MHz.: <0.5 dB
- Insertion Loss <2000 MHz.: <1.4 dB
- Insertion Loss <3000 MHz.: <1.6 dB
- Isolation <100 MHz.: >70 dB
- Isolation <2000 MHz.: >62 dB
- Isolation <3000 MHz.: >30 dB
- Impedance: 50 ohm
- Connector Type: N female (N male to N male adapter included to connect to receiver)
- Power Supply: Supplied by the receiver
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Aor |
