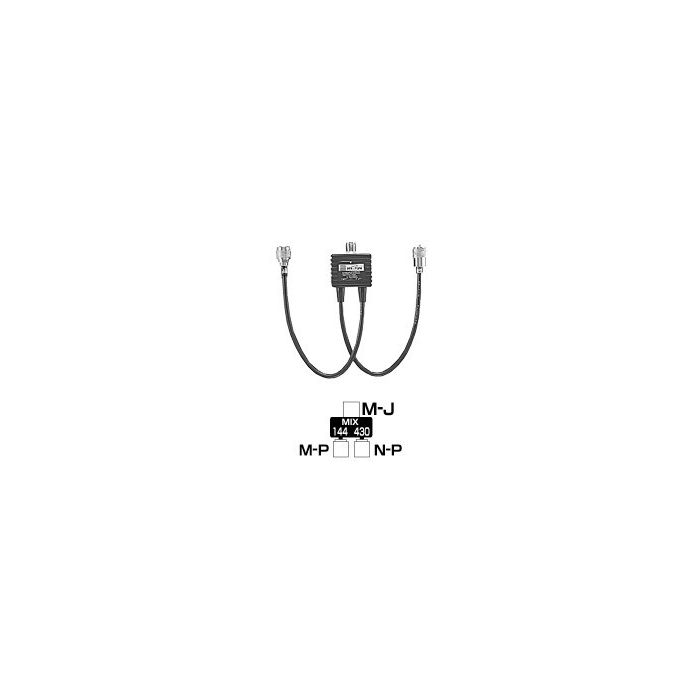

Diamond MX-72H Duplexer

MX72H: HF-144-430MHz Dimensions:46Wx25Hx57Dmm Weight:220g Passband width:LPF-1.6 to 30MHz 49 to 150MHz,HPF-400 to 460MHz (LPF:1.6 to 225MHz,HPF:340 to 1000MHz receiving only) Power rating:1.6 to 30MHz:400W(CW)-1kW(PEP), 49 to 150MHz:150W(CW)-400W(PEP), 400 to 460MHz:100W(CW)-250W(PEP) Insertion loss:LPF-Less than 0.15dB,HPF-Less than 0.25dB Isolation:LPF:More than 60dB Impedance:50ohms - VSWR:Less than 1.2:1 Connector:(MIX)M-J-(144)M-P-(430)M-P Coaxial cable:5D-2VS(35cm)
