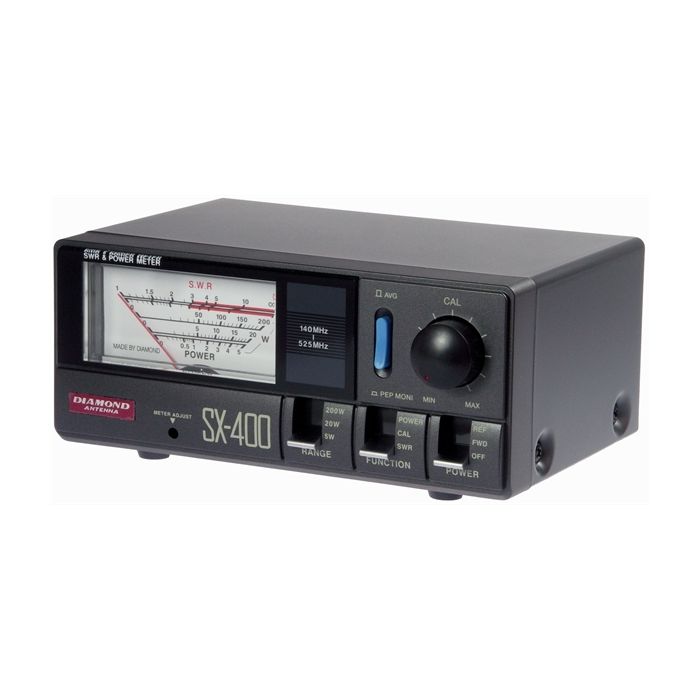

Diamond SX-400 PL SWR Powermeter
Art.nr. 6498
Niet op voorraad
Excl. BTW
€ 135,00
€ 111,57
SWR-Powermeter 140-525 MHz 200 Watt Connector :PL
Description
Dimensions:155Wx63Hx103Dmm
Weight:540g
Frequency range:140 to 525MHz
Power display range:5W 20W 200W
Accuracy at full scale:5W Range ±10%(F.S),20W Range ±5%(F.S),200W Range ±5%(F.S),(Add -10% of full scale at 220 to 420MHz,add +10% of full scale at 450 to 525MHz)
Minimum power at SWR measurement:4W
Insertion loss:Less than 0.1dB(140 to 250MHz) Less than 0.2dB(400 to 470MHz)/less than 0.3dB(525MHz)
Measurement function:Forward RF power,Reflected RF power,SWR,PEP monitor
- Dimensions:155Wx63Hx103Dmm
- Weight:540g
- Frequency range:140 to 525MHz
- Power display range:5W 20W 200W
- Accuracy at full scale:5W Range ±10%(F.S),20W Range ±5%(F.S),200W Range ±5%(F.S),(Add -10% of full scale at 220 to 420MHz,add +10% of full scale at 450 to 525MHz)
- Minimum power at SWR measurement:4W
- Insertion loss:Less than 0.1dB(140 to 250MHz) Less than 0.2dB(400 to 470MHz)/less than 0.3dB(525MHz)
- Measurement function:Forward RF power,Reflected RF power,SWR,PEP monitor
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Diamond |
