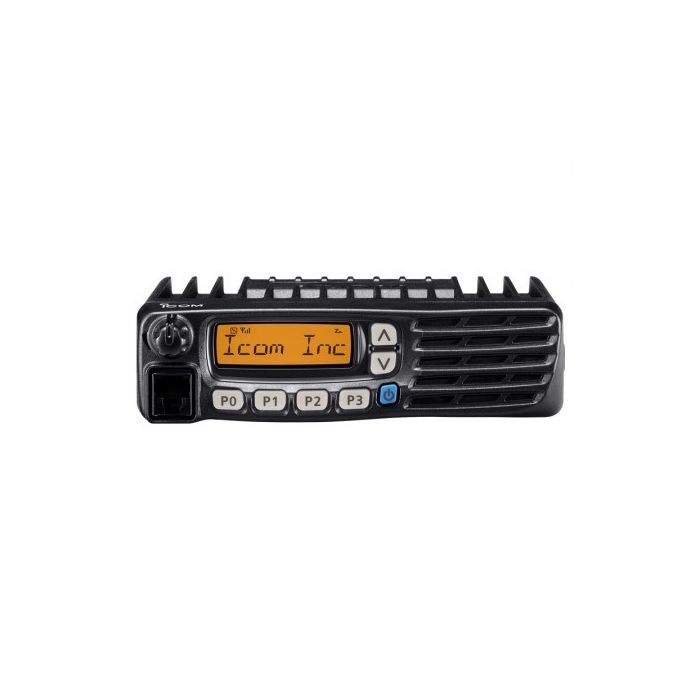

Icom IC-F6022 UHF Mobilofoon
Art.nr. 6811
Op voorraad
Excl. BTW
€ 369,00
€ 304,96
PMR Mobile 400-470MHz, 12.5/25 kHz, 25W, 128ch, inclusief HM-152, OPC-1194A
Description
Supplied Accessories • Hand mic. (HM-152) • DC power cable • Mounting bracket kit • Microphone hanger • Key assign stickers
General
|
|
IC-F5022 |
IC-F6022 |
||
|
Frequency coverage |
136–174MHz |
400–470MHz |
||
|
Number of channels |
Max. 128 Ch/ 8 zones |
|||
|
Channel spacing |
2.5/20/25kHz |
|||
|
Type of emission |
16K0F3E, 14K0F3E, 8K50F3E |
|||
|
Current drain |
Tx |
25W |
5.0A |
|
|
Rx |
Max. audio |
0.7A |
||
|
Stand-by |
250mA |
|||
|
Dimensions |
150×40×117.5 mm |
|||
|
Weight |
0.8kg (approx.) |
|||
Transmitter
|
|
IC-F5022 |
IC-F6022 |
|
RF output power |
25W |
|
|
Spurious emissions |
0.25µW (= 1GHz) 1.0µW (> 1GHz) |
|
|
Frequency stability |
±1.5kHz |
|
|
Audio harmonic distortion |
3% typical |
|
|
FM Hum and Noise |
- |
|
Receiver
|
|
IC-F5022 |
IC-F6022 |
|
Sensitivity at 20dB SINAD |
–4dBµV (typ.) |
|
|
Adjacent channel selectivity (WM/N) |
75dB/75dB/65dB (typ.) |
|
|
Spurious response rejection |
80dB (typ.) |
|
|
Intermodulation rejection |
67dB (typ.) |
|
|
AF output power |
4W (typ.) |
|
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
|
|
IC-F5022 |
|
|
Number of option slots |
1 |
|
|
CTCSS/ DTCS |
encoder |
Available |
|
decoder |
Available |
|
|
2-Tone |
encoder |
Available |
|
decoder |
Available |
|
|
5-Tone |
encoder |
Available |
|
decoder |
Available |
|
|
DTMF autodial |
Available |
|
|
DTMF decoder |
UT-108R |
|
|
Voice Scrambler |
Inversion |
- |
|
Non-rolling |
UT-109R |
|
|
Rolling |
UT-110R |
|
|
BllS 1200 |
Available (Limited functions) |
|
|
MPT 1327 |
- |
|
|
LTR™ trunking |
- |
|
|
IDAS digital |
- |
|
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
|
Standard |
MIL-810 F |
|
Low Pressure Storage |
500.4 I |
|
Low Pressure Operation |
500.4 II |
|
High Temperature Storage |
501.4 I |
|
High Temperature Operation |
501.4 II |
|
Low Temperature Storage |
502.4 I |
|
Low Temperature Operation |
502.4 II |
|
Temperature Shock |
503.4 I |
|
Solar Radiation |
505.4 I |
|
Humidity Induced |
507.4 |
|
Settling Dust |
510.4 III |
|
Vibration |
514.5 I |
|
Shock Functional |
516.5 I |
|
Shock Transit Drop |
516.5 IV |
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
| Vrachttype | N |
|---|---|
| Vergunning | LET OP voor sommige apparatuur is een vergunning nodig. Controleer de locale wet en regelgeving. |
| Merk | Icom |
