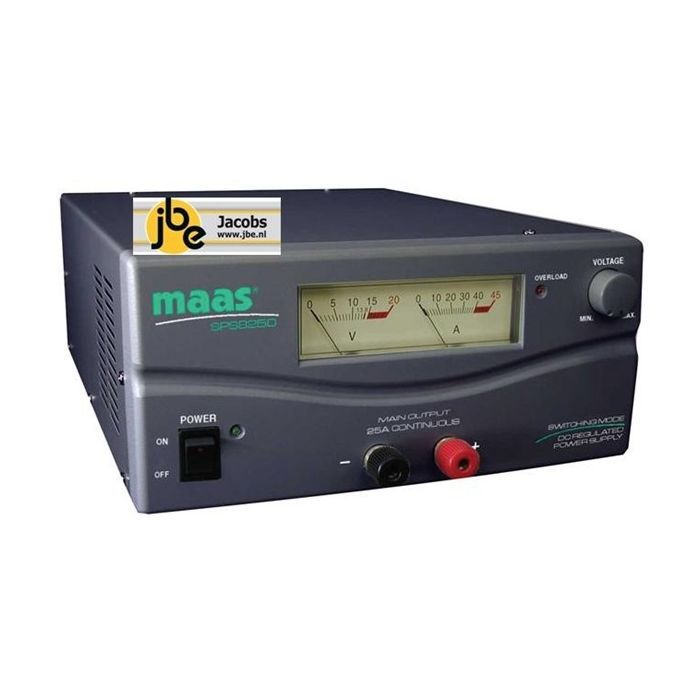

Maas SPS-8250 Voeding

Technical data Operating voltage 230 V AC - 50Hz Output voltage 3-15 volts DC regulated or 13.8 volt DC fixed voltage by the input voltage switch on the bottom Output current 25 Amp 28 amp output current for a short time Ripple & Noise <50mV Load Regulation <200mV Line Regulation <50mV View & measurement works red analog meters for voltage and current, state Bi-color LED (fault) and green DC connectors with screw terminals Cooling fan Overload protection circuit, over temperature, short circuit and reverse polarity protection, output overvoltage protection at 16.5 volts Extras dark gray metal housing with rubber feet, high efficiency> 78% by PFC (Dynamic Power Factor Correction)> 0.95 maximizes the required current, high RFI stability Dimensions (WxHxD) mm 220x110x220 Weight 2.7 Kg
