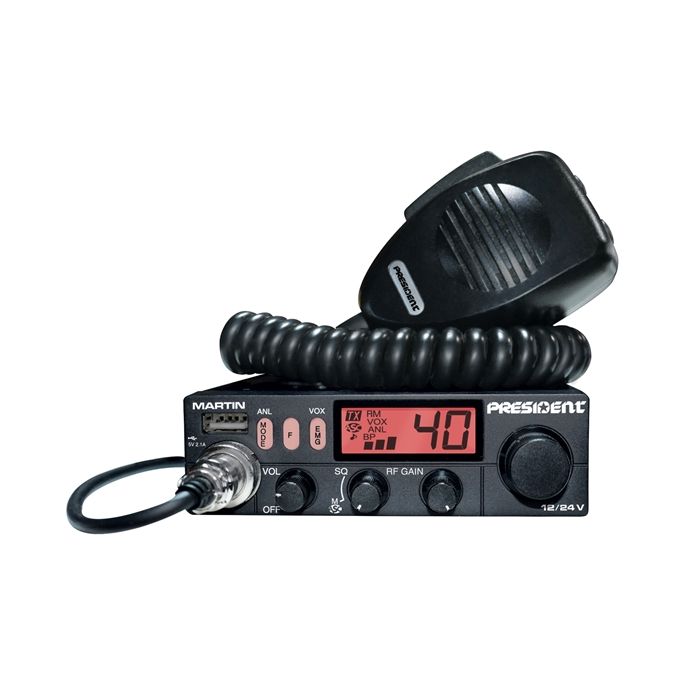

President Martin 12V/24V CB Transceiver

Transceiver CB Mobile

• Frequency Range: 40 Channels (26.965 - 27.405 MHz)

• Standards:  6 European Standards

• Modulation Modes: AM / FM

• Output Power: 4 Watt AM / 4 Watt FM

• Power supply: 12 V / 24 V

• Handsfree Option: Built in VOX

• Microphone: Electret Type, 6-Pin with President Wirin

FEATURES, FUNCTIONS AND SPECIFICATIONS:

• 40 channels AM / FM

• 12 / 24 V

• Volume adjustment and ON/OFF

• Manual squelch and ASC

• Multi-functions LCD display

• S-meter

• ANL filter

• Scan

• RF Gain

• VOX

• Key beep

• Roger beep

• F function key

• Mode switch AM / FM

• Preset emergency (EMG 1/2)

• TOT (Time out timer)

• Front microphone plug

• External loudspeaker jack

• USB 5V 2.1A

GENERAL:

• Number of channels: 40

• Modulation modes: AM / FM

• Frequency ranges: from 26.965 MHz to 27.405 MHz

• Antenna impedance: 50 Ohms

• Power supply: 12 V / 24 V

• Size: 115 (L) x 180 (H) x 35 (D) cm

• Weight: 0,8 kg

• Accessories supplied:

…Ultra light electret microphone with support

…Mounting cradle

…Screws

TRANSMISSION:

• Frequency allowance: +/- 300 Hz

• Carrier power: 4 W AM / 4 W FM

• Transmission interference: inferior to 4 nW (- 54 dBm)

• Audio response : 300 Hz to 3 KHz in AM/FM

• Emitted power in the adj. channel: inferior to 20 µW

• Microphone sensitivity: 10 mV

• Drain: 1,7 A (with modulation)

• Modulated signal distortion: 1,8 %

RECEPTION:

• Maxi. sensitivity at 20 dB sinad: 0.5 µV - 113 dBm (AM/FM)

• Frequency response: 300 Hz to 3 kHz in AM/FM

• Adjacent channel selectivity: 60 dB

• Maximum audio power: 5 W

• Squelch sensitivity:

…Minimum 0.2 µV - 120 dBm

…Maximum 1 mV - 47 dBm

• Frequency image rejection rate: 60 dB

• Intermediate frequency rej. rate: 70 dB

• Drain: 500 mA nominal / 800 mA maximum

PACKING INCLUDES:

1 Pc of CB Radio

1 Pc of Microphone

1 Pc of Bracket

1 Pc of Mounting Set

1 Pc of User Manual in English, French, Spanish and Polish
