Sirio Gainmaster 1/2 golf SI 2113120.00
Art.nr. 6924
Op voorraad
Excl. BTW
€ 165,00
€ 136,36
Antenna Base for CB & 10 mtr, Fiber White, 736cm,500W.(KAN NIET WORDEN VERZONDEN, ALLEEN OPGEHAALD)
Description
FEATURES, FUNCTIONS AND SPECIFICATIONS:
Gain-Master HW is a HALF WAVE high tech fiberglass base station antenna for 10m to 11m amateur band made of telescopic fiberglass tubes.
Engineered with the most advanced available technologies it is completly manufactured in Italy with high quality materials.

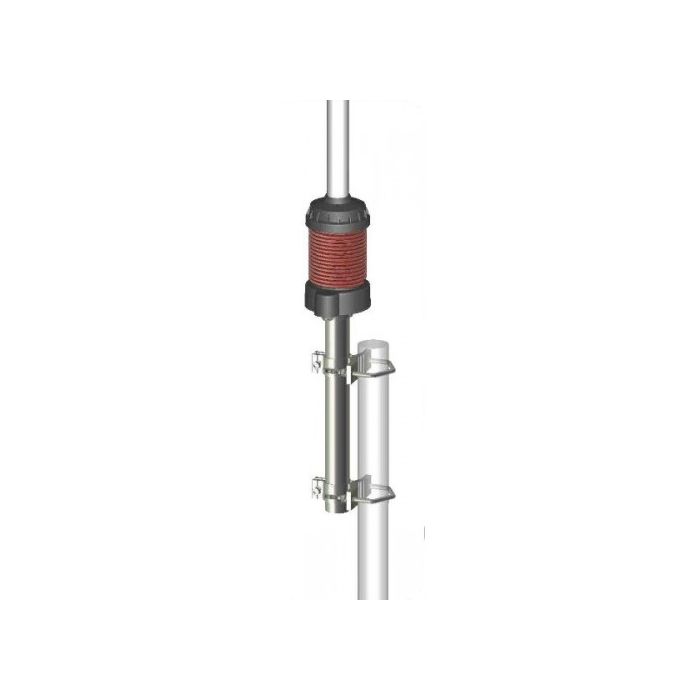

The design of the radiant element works like a central feeded dipole so all RF currents on the radiator are in-phase and the ground plane radials are not necessary. The coaxial coil at the bottom works like RF-choke for the optimum decoupling from mast and feeding line.
ELECTRICAL DATA:
Type: 1/2 ? Center feed
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27.2 - 30 MHz Tunable
Systems: 10m - HAM
Gain: 0 dBd - 2.15 dBi
Bandwidth: = 1.8MHz @ SWR = 2
Max Power: 500 Watt (CW)
Connector: UHF-Female (SO-239)
MECHANICAL DATA:
Materials: Anodized Aluminium, Copper, Stainless steel, Fiberglass, Thermoplastic UV stabilized.
Height (approx): 5560 mm (18.24 ft)
Weight (approx): 2600 gram (5.73 lb)
Mounting type: On-Mast
PACKING INCLUDES:
1 Pc of Antenna
1 Pc of Mounting Materials
1 Pc of User Manual in Italian and English
FEATURES, FUNCTIONS AND SPECIFICATIONS:
Gain-Master HW is a HALF WAVE high tech fiberglass base station antenna for 10m to 11m amateur band made of telescopic fiberglass tubes.
Engineered with the most advanced available technologies it is completly manufactured in Italy with high quality materials.
The design of the radiant element works like a central feeded dipole so all RF currents on the radiator are in-phase and the ground plane radials are not necessary. The coaxial coil at the bottom works like RF-choke for the optimum decoupling from mast and feeding line.
ELECTRICAL DATA:
Type: 1/2 ? Center feed
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27.2 - 30 MHz Tunable
Systems: 10m - HAM
Gain: 0 dBd - 2.15 dBi
Bandwidth: = 1.8MHz @ SWR = 2
Max Power: 500 Watt (CW)
Connector: UHF-Female (SO-239)
MECHANICAL DATA:
Materials: Anodized Aluminium, Copper, Stainless steel, Fiberglass, Thermoplastic UV stabilized.
Height (approx): 5560 mm (18.24 ft)
Weight (approx): 2600 gram (5.73 lb)
Mounting type: On-Mast
PACKING INCLUDES:
1 Pc of Antenna
1 Pc of Mounting Materials
1 Pc of User Manual in Italian and English
| Vrachttype | L |
|---|---|
| Vergunning | Nee |
| Merk | Sirio |
