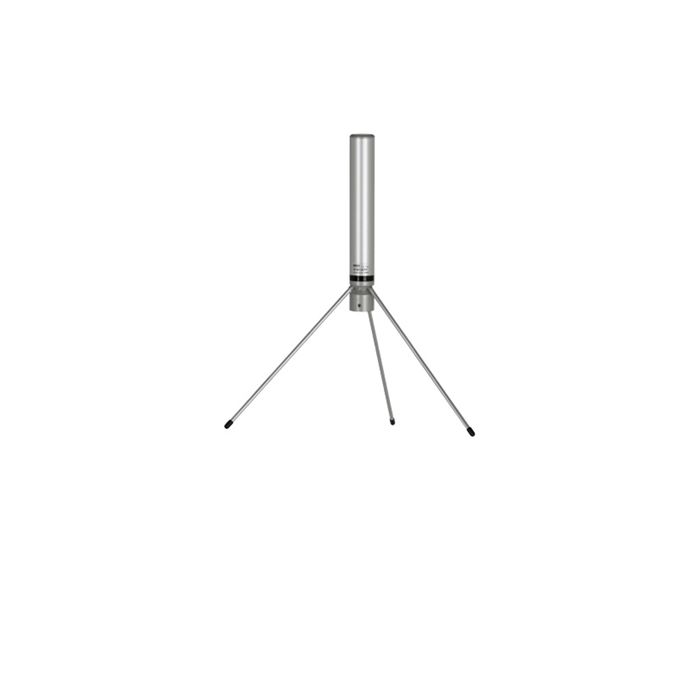

Sirio GP108-136 LB-N VHF antenne (N uitvoering)
Art.nr. 1908
Op voorraad
Excl. BTW
€ 89,95
€ 74,34
VHF basis antenne.108-136 MHz No tuning required.N-female connector
Description
Electrical Data:
Type: 1/4 ? ground plane
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
GP 66-78 LB-U:
66-78 MHz No tuning required
GP 66-78 LB-N:
66-78 MHz No tuning required
GP 76-88 LB-U:
76-88 MHz No tuning required
GP 76-88 LB-N:
76-88 MHz No tuning required
GP 87-108 LB-U:
87-108 MHz No tuning required (@ SWR = 2.5)
GP 87-108 LB-N:
87-108 MHz No tuning required (@ SWR = 2.5)
GP 108-136 LB-U:
108-136 MHz No tuning required
GP 108-136 LB-N:
108-136 MHz No tuning required
GP 160 LB-U:
145-175 MHz No tuning required
GP 160 LB-N:
145-175 MHz No tuning required
Systems: 2m-HAM, VHF Airband, VHF Marine Band, VHF Low-band (66-88MHz), ORBCOMM M2M
Gain: 0 dBd – 2.15 dBi
Max Power: 1000 W (CW)
Grounding protection: DC-Ground
Connector:
GP 66-78 LB-U:
UHF-female (SO-239)
GP 66-78 LB-N:
N-female
GP 76-88 LB-U:
UHF-female (SO-239)
GP 76-88 LB-N:
N-female
GP 87-108 LB-U:
UHF-female (SO-239)
GP 87-108 LB-N:
N-female
GP 108-136 LB-U:
UHF-female (SO-239)
GP 108-136 LB-N:
N-male
GP 160 LB-U:
UHF-female (SO-239)
GP 160 LB-N:
N-female
Mechanical Data:
Materials: Anodized Aluminium, Stainless steel, Nylon
Height (approx):
GP 66-78 LB-U:
1640 mm / 5.38 ft
GP 66-78 LB-N:
1640 mm / 5.38 ft
GP 76-88 LB-U:
1400 mm / 4.59 ft
GP 76-88 LB-N:
1400 mm / 4.59 ft
GP 87-108 LB-U:
1190 mm / 3.9 ft
GP 87-108 LB-N:
1190 mm / 3.9 ft
GP 108-136 LB-U:
890 mm / 2.92 ft
GP 108-136 LB-N:
890 mm / 2.92 ft
GP 160 LB-U:
700 mm / 2.3 ft
GP 160 LB-N:
700 mm / 2.3 ft
Weight (approx):
GP 66-78 LB-U:
1930 gr / 4.25 lb
GP 66-78 LB-N:
1930 gr / 4.25 lb
GP 76-88 LB-U:
1710 gr / 3.77 lb
GP 76-88 LB-N:
1710 gr / 3.77 lb
GP 87-108 LB-U:
1500 gr / 3.31 lb
GP 87-108 LB-N:
1500 gr / 3.31 lb
GP 108-136 LB-U:
1130 gr / 2.49 lb
GP 108-136 LB-N:
1130 gr / 2.49 lb
GP 160 LB-U:
950 gr / 2.09 lb
GP 160 LB-N:
950 gr / 2.09 lb
Mounting type: On-Mast
Electrical Data:
- Type: 1/4 ? ground plane
- Radiation: Omnidirectional
- Polarization: Linear vertical
Frequency range:
GP 108-136 LB-N:108-136 MHz No tuning required
Systems: 2m-HAM, VHF Airband, VHF Marine Band, VHF Low-band (66-88MHz), ORBCOMM M2M
Gain: 0 dBd – 2.15 dBi
Max Power: 1000 W (CW)
Grounding protection: DC-Ground
Connector:GP 87-108 LB-N:N-female
Mechanical Data:
Materials: Anodized Aluminium, Stainless steel, Nylon
Height (approx): GP 108-136 LB-N:890 mm / 2.92 ft
Weight (approx): GP 108-136 LB-N:1130 gr / 2.49 lb
Mounting type: On-Mast
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Sirio |
