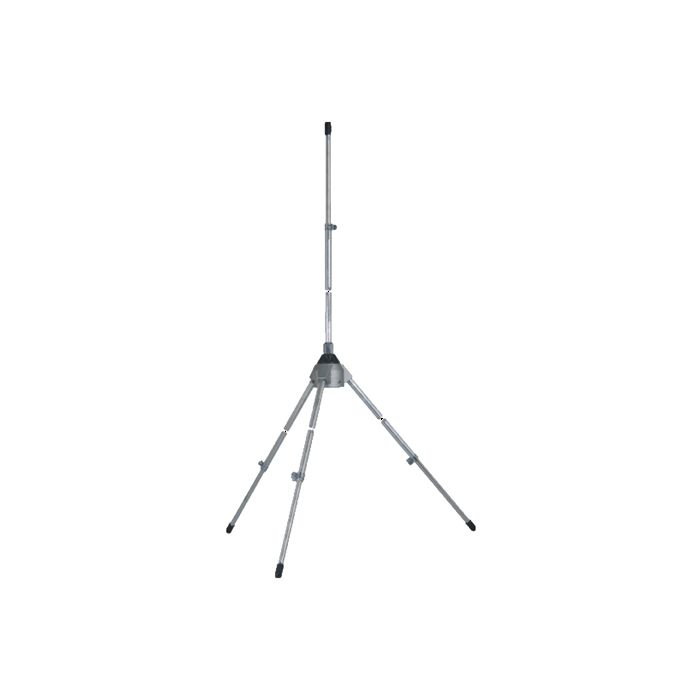

Sirio GPA66-108 Mhz

Mono-band - Omnidirectional, Unity gain - Made of aluminium alloy 6063 T-832 - Tunable by whip length adjusting Electrical Data ±- Type: 1-4? ground plane - Frequency range: GPA 66-108: tunable 66...108 MHz - Impedance: 50? - Radiation (H-plane): 360° omnidirectional - Radiation (E-plane): beamwidth @ -3 dB = 86° - Radiation angle: 0° - Polarization: linear vertical - Gain: 0 dBd - 2.15 dBi - Bandwidth @ SWR ?2: GPA 66-108: ?6.5 MHz @ 66 MHz - SWR @ res. freq.: ? 1.2 @ start freq. - Max. Power (CW) @ 30°C: GPA 66-108: 500 Watts - Connector: UHF-female Mechanical Data ±- Materials: Aluminium, Chromed brass, Nylon - Wind load - resistance: GPA 66-108: 54 N at 150 Km-h - 150 Km-h - Wind surface: GPA 66-108: 0.05 m² - Height (approx.): GPA 66-108: 1930 mm - Weight (approx.): GPA 66-108: 700 gr - Radial length (approx.): GPA 66-108: 1080 mm - Mounting mast: Ø 35-40 mm
