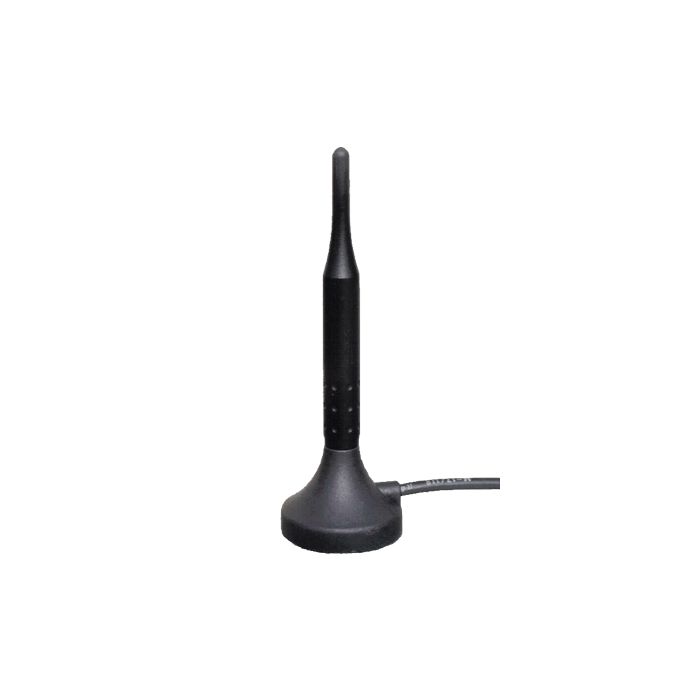

Sirio Micromag LTE SMA 3G 4G

Magneetvoetantenne, 698-960Mhz & 1710-2700Mhz No Tuning. L=9CM, incl. 3 meter RG174 kabel

• Type:     1/4 ?
• Radiation:           Omnidirectional
• Polarization:       Linear vertical
• Frequency range:             698-960 MHz & 1710-2700MHz No tuning required
• Systems:              GSM-R, GSM-900, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz
• Gain:     0 dB ref. to a ?/4 whip
• Max Power:        20 W (CW)
• Cable lenght / type:         3 m (9.84 ft) / RG174
• Connector:
• MICROMAG LTE:
• FME-female
• MICROMAG LTE:
• SMA-male

Mechanical Data:

• Materials:           Chromed brass, Stainless steel, Nylon
• Height (approx):               90 mm / 0.3 ft
• Weight (approx):              80 gr / 0.18 lb
• Mounting type:  Magnetic mount
