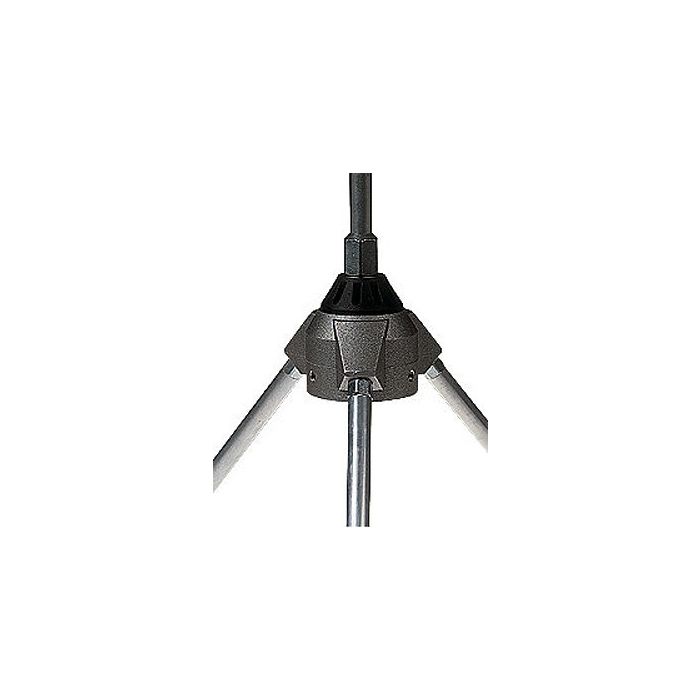

Sirio Signal Keeper 27 CB Basisantenne

Features:

Base station antenna

Omnidirectional, Compact dimensions

Factory tuned at mid-band

Made of aluminium alloy 6063 T-832

Side mast mounting allowed by optional bracket FT-2 code 2510004.00

Part Numbers:

P/N 2101301.00 SIGNAL KEEPER

Electrical Data

-Type: 1/4 ? base loaded ground plane

-Frequency range: 26-28 MHz

-Impedance: 50O

-Radiation (H-plane): 360° omnidirectional

-Polarization: linear vertical

-Gain: 0 dBd, 2.15 dBi

-Bandwidth @ SWR = 2: = 850 KHz

-SWR @ res. freq.: = 1.2

-Max. power:

 100 Watts (CW) continuous
 300 Watts (CW) short time

-Feed system / position: Direct / Center

-Connector: UHF-female

Mechanical Data

-Materials: Aluminium, Steel, Nylon

-Wind load / resistance: 36 N at 150 Km/h / 130 Km/h

-Wind surface: 0.03 m²

-Height (approx.): 2370 mm

-Weight (approx.): 640 gr

-Radial length (approx.): 640 mm

-Mounting mast: Ø 35-40 mm
