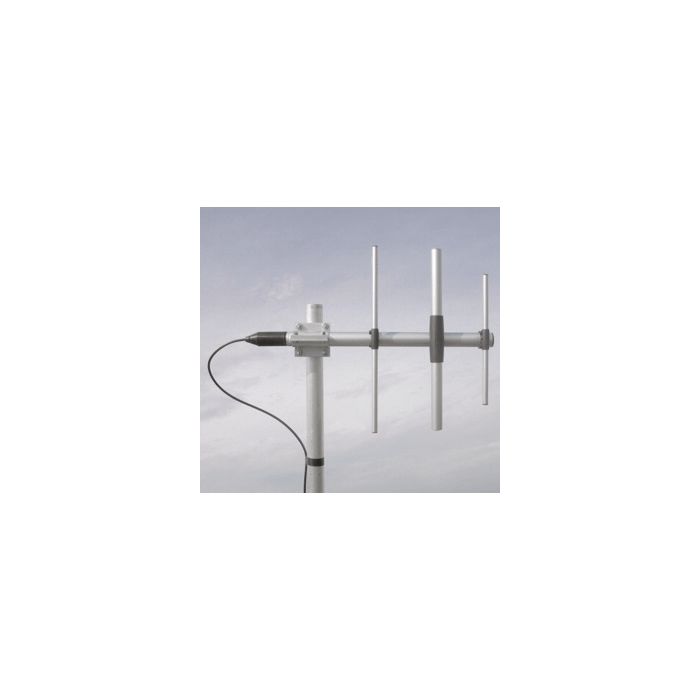

Sirio WY400-3N Basisantenne
Art.nr. 4648
Niet op voorraad
Excl. BTW
€ 105,00
€ 86,78
4.85 dBd – 7 dBi, 3 elements Yagi,400-470 MHz @ SWR ?1.5 No tuning required, N Female connector
Description
Electrical Data:
Type: 3 elements Yagi
Radiation: Directional
Polarization: Linear Horizontal
Frequency range:
WY 380-3N:
380-440 MHz @ SWR =1.5 No tuning required
WY 400-3N:
400-470 MHz @ SWR =1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain: 4.85 dBd – 7 dBi
Max Power: 150 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
WY 380-3N:
565 x 400 mm / 1.85 x 1.31 ft
WY 400-3N:
525 x 375 mm / 1.72 x 1.23 ft
Weight (approx):
WY 380-3N:
1130 gr / 2.49 lb
WY 400-3N:
1100 gr / 2.43 lb
Mounting type: On-Mast
Electrical Data:
Type: 3 elements Yagi
Radiation: Directional
Polarization: Linear Horizontal
Frequency range:
WY 400-3N:
400-470 MHz @ SWR =1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain: 4.85 dBd – 7 dBi
Max Power: 150 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
WY 400-3N:
525 x 375 mm / 1.72 x 1.23 ft
Weight (approx):
WY 400-3N:
1100 gr / 2.43 lb
Mounting type: On-Mast
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Sirio |
